Diffusers - middle-size bubble

Mivalt - Aeration elements - Diffusers - middle-size bubble - Diffusers Matala, ALO

Diffusers Matala, ALO

Inquiry

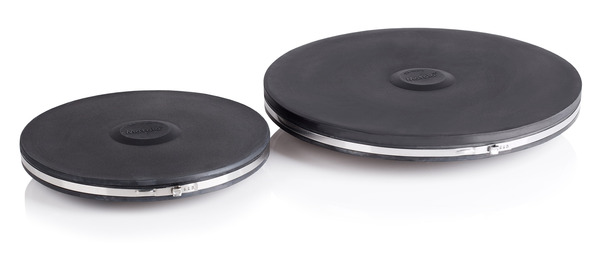

We distribute Matala membrane disc diffusers (BHB-MD225/MD310) - medium bubble.

Features and benefits

  • A rigid EPDM membrane with a highly durable base which is made of moulded polypropylene
  • Precisely perforated I-shaped slits open when air passes through and close at the end. Thanks to this function, the slits resist tearing and stay clean longer.
  • The standard G3/4 thread allows for a more comfortable connection
  • Standard stainless steel clamping rings DIN 1.4301 (AISI 304) hold the membrane firmly in place
  • Triple O-rings support the centre of the diaphragm when no air is flowing

Matala diffuser

Model

BHB-MD225

BHB-MD310

Air flow

40 - 120 l/m

100 - 200 l/m

Disc body (material)

ABS

Nylon + laminate

Membrane

EPDM (ethylene-propylene rubber)

Fixation

DIN 1.4301 stainless steel - clamping ring

Connection

G3/4 thread

Diameter

225 mm

310 mm

Weight

350 g

907 g

ALO diffuser - fine bubble

Technical data

Disk - 250

Disk - 320

Material

  • Membrane with precise holes
  • Support container



High quality EPDM (ethylene-propylene rubber)/silicone

ABS

Diameter

250 mm

320 mm

Bubble size

1 – 3 mm

1 – 3 mm

Air flow

  • Continuous operation

28 - 70 l/m

50 - 100 l/m

Connection

G3/4

G3/4

Ambient temperature

0 – 100 °C

0 – 100 °C

Effective diffusion surface

0,043 m2

0,068 m2
