Screw conveyors MP-SC
Screw conveyors

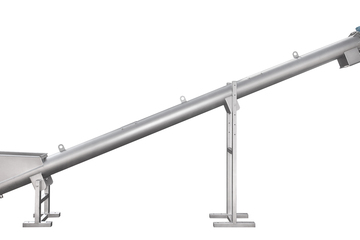

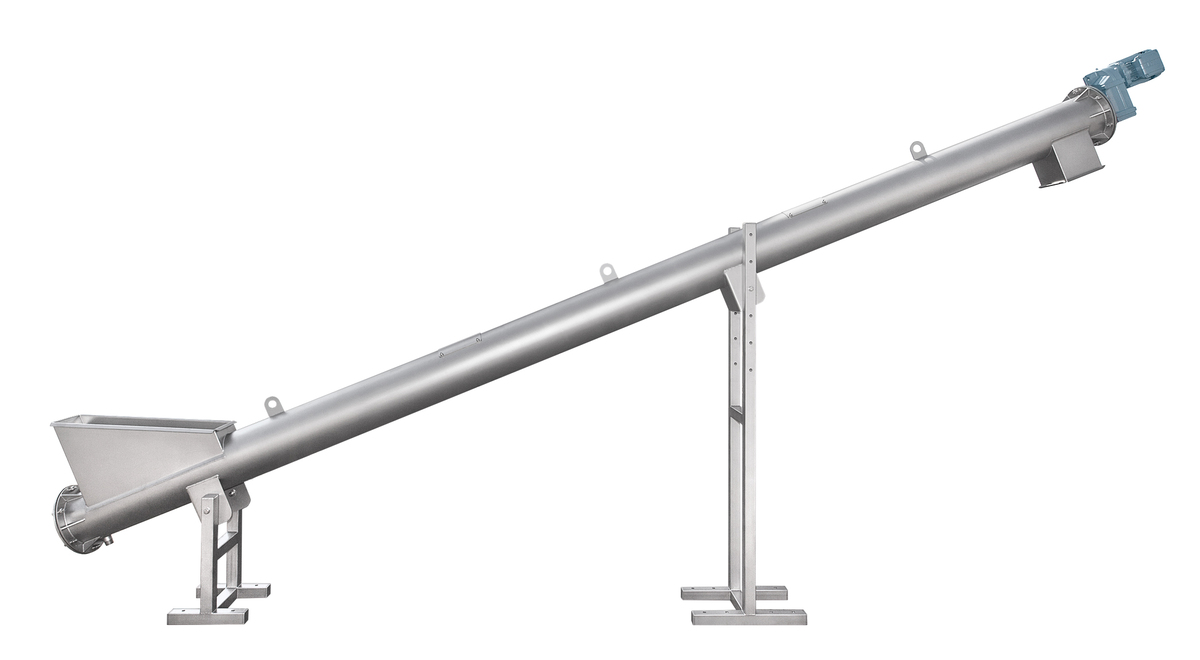

Screw conveyors are used for transportation of solid cake from MP-DW dewatering machines. In comparison with belt conveyors, screw conveyors can reach bigger discharge height (angle can be up to 30°).

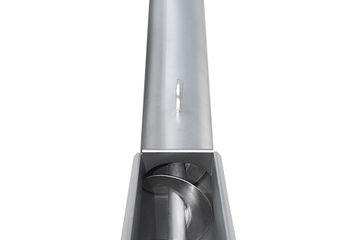

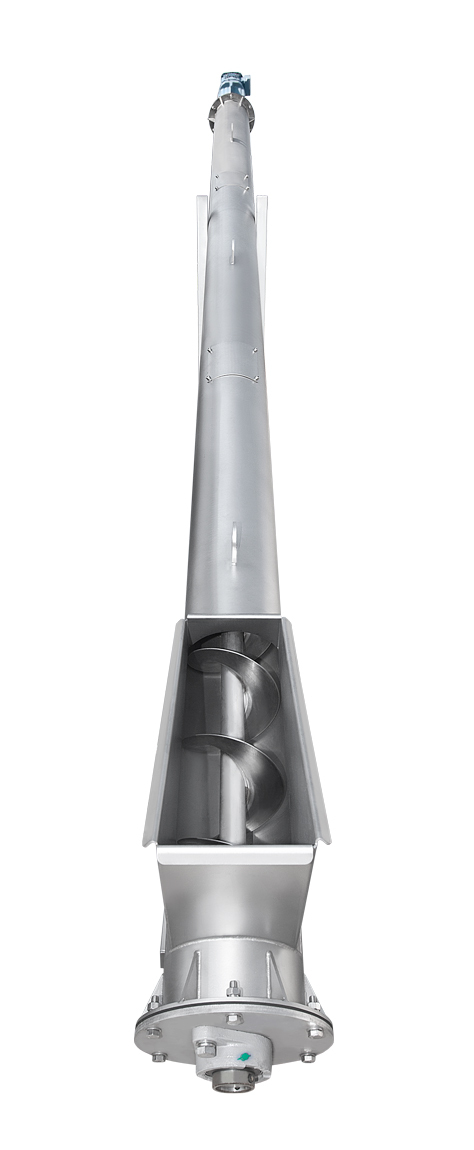

Screw conveyor is used for transportation of solid cake from MP-DW series dewatering machines. In comparison with belt conveyors MP-BC series, screw conveyor is capable of transporting sludge to bigger heights. In addition, cross-section of screw conveyor is smaller, compared to belt conveyor.

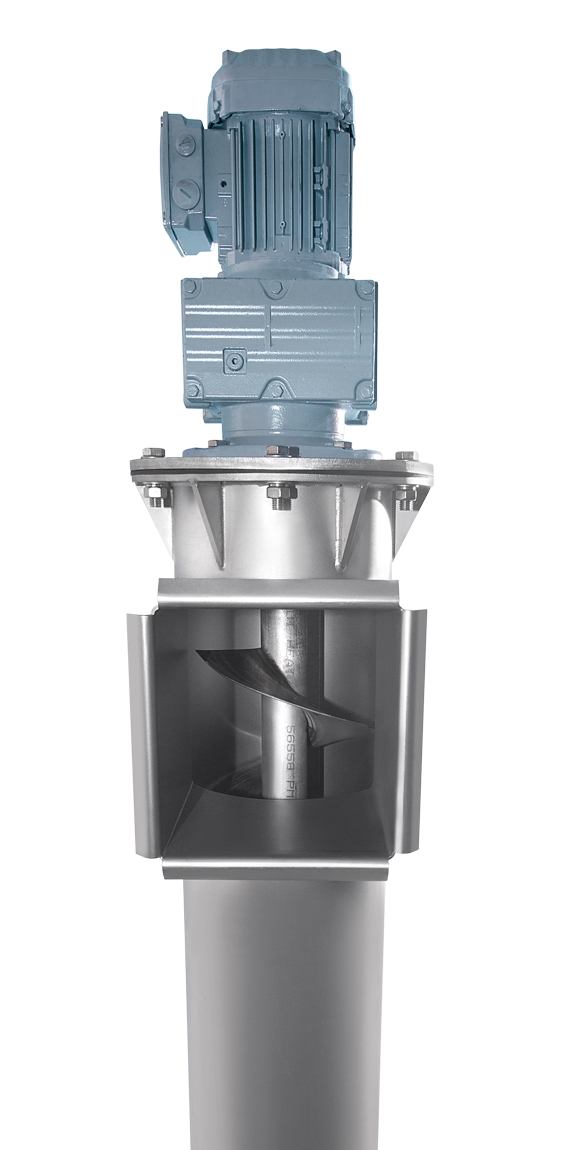

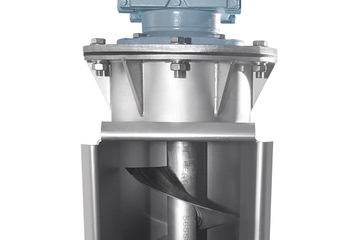

Conveyor (except of ball bearing and gear motor) is made of DIN1.4301 (AISI304) stainless steel. Screw shaft is inserted into tube, conveyor does not include any lining material, and thus it is not required to replace wearing parts.
Screw conveyors
Size calculator
Please input desired hydraulic flow and suspended solids content. Our calculator will suggest you optimum size of machine...
- WT primary sludge - raw sludge from activation (ČOV – surový kal z aktivace): 0,5–1%
- WWT secondary sludge - after final settling tank (ČOV – stabilizovaný, zahuštěný kal): 1,5–4 %
- Sludge from DAF (Kal z flotace): 2–4 %
- Biogas station sludges (Kaly z produkce bioplynu): 4–6 %
- Grease traps, oil separation (Lapáky tuku, olejové aplikace): 4-6%
Capacity of MP-DW - dry material flow per hour :
- MP-DW-131: 10 kg/h
- MP-DW-201: 30 kg/h
- MP-DW-301: 60 kg/h
- MP-DW-302: 120 kg/h
- MP-DW-401: 140 kg/h
- MP-DW-402: 280 kg/h
- MP-DW-403: 420 kg/h
